Wind tower series

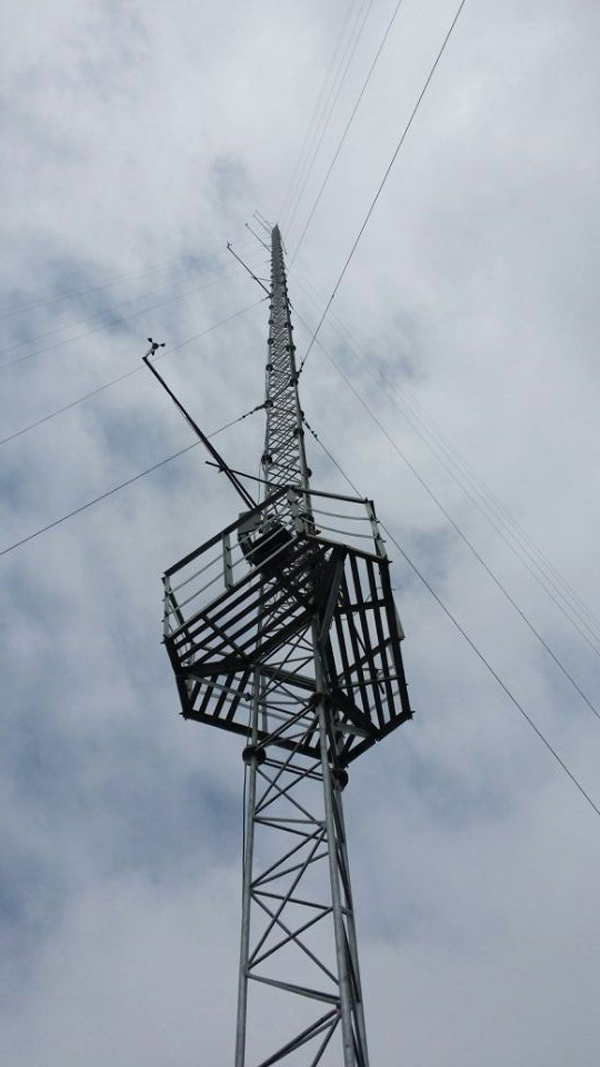

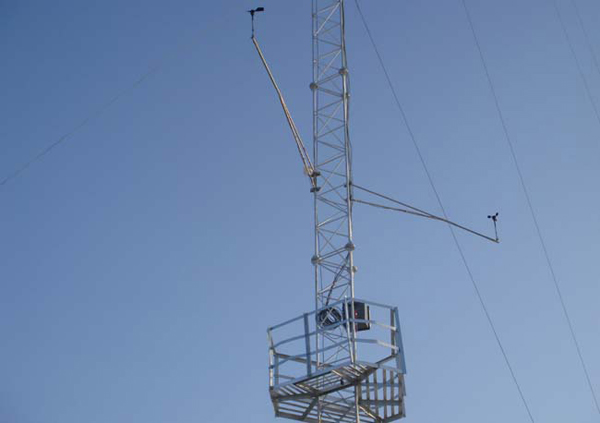

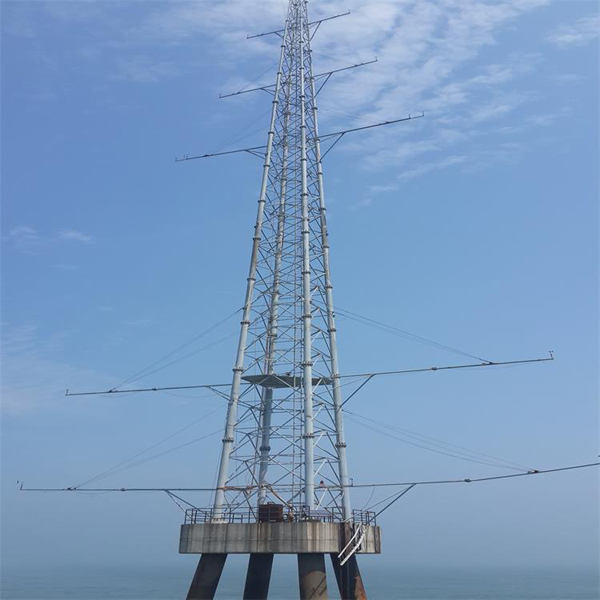

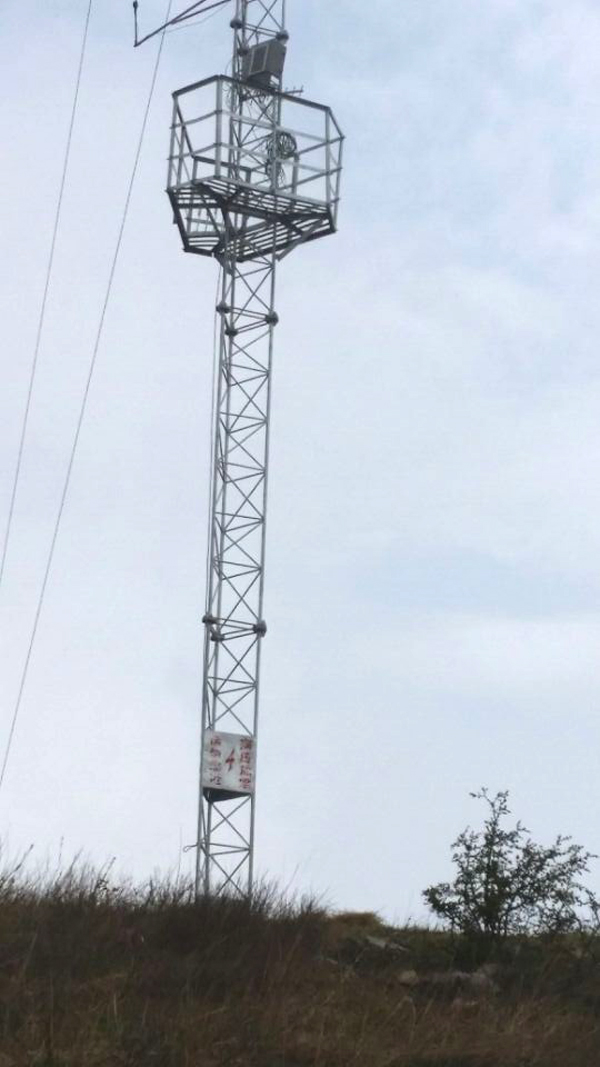

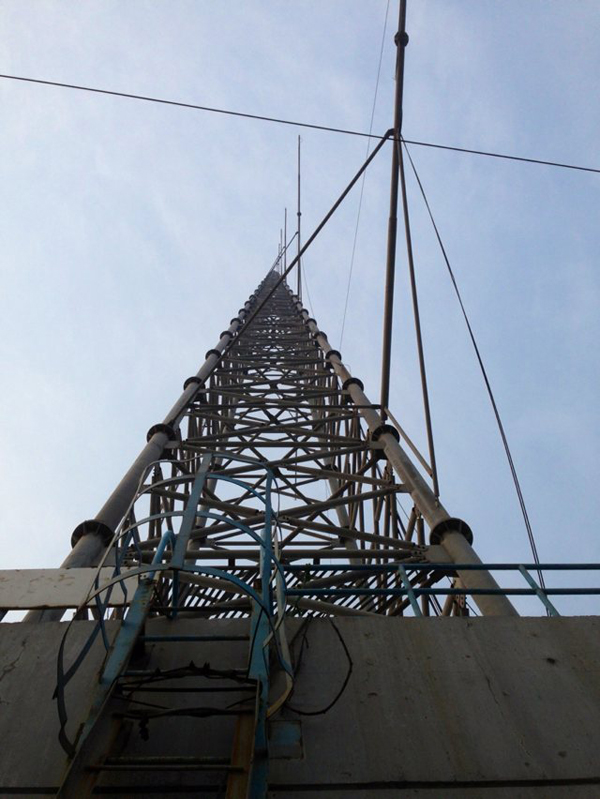

The wind tower is located in the site of the wind farm, mostly quilted structure and cylinder structure, and adopts the cable-stayed reinforcement method, and the height is generally 10-150 meters. Anemometer, wind vane, temperature and air pressure monitoring equipment are installed at different heights of the tower body. The wind conditions at the site can be observed continuously throughout the day, and the measurement data is recorded and stored in a data logger mounted on the tower. Wind tower structure design: the common wind tower structure form has two kinds of self-supporting and cable type. The lower part of the self-supporting wind measuring tower is wide, the amount of tower materials is relatively large, and the foundation requirements are high. The tensile force of the cable wind measuring tower is reasonable, the reliability is high, the section of the tower body is small, the amount of tower materials is small, but the number of cable foundation is large, and the construction technology is complicated. The wind measuring tower can adopt single steel pipe, triangular truss, quadrilateral truss and other structural forms. The single steel pipe structure requires large diameter of steel pipe, large windward area and large amount of material; The triangular truss structure form is more stable, and the tower is less affected by wind load, which is the most economical. The structure form of quadrilateral truss is relatively stable, under normal circumstances, when the triangular truss can not meet the force and deformation requirements or is not economical, the tower can choose the quadrilateral truss structure form. The main function of the wind tower: environmental monitoring, wind, air pressure, humidity and other resource data collection. Support the installation of the corresponding instruments and equipment. Applicable units: power plant planning, island wind measurement, meteorological data collection, environmental monitoring and other departments.

Hengshui Hengmiao Steel Structure Co., Ltd. was founded in 2012, is a research and development, design, production and management as one of the professional manufacturing of all kinds of steel tower enterprises. The company is located in Jingxian County, Hebei Province, the hometown of the iron tower. Close to Beijing-Shanghai, Hengde high-speed, 104, 106 National Road, Jinpu, Shide, Beijing-Kowloon railway line, transportation is very convenient. The company has fixed assets of 168 million yuan, covers an area of 42,000 square meters, and has an annual production capacity of 50,000 tons.
